Plant Operations Requirements
|
1 |
input voltage |
Voltage: AC 220 V, 50/60 Hz |
|
2 |
External dimensions |
W725/D750/H680mm |

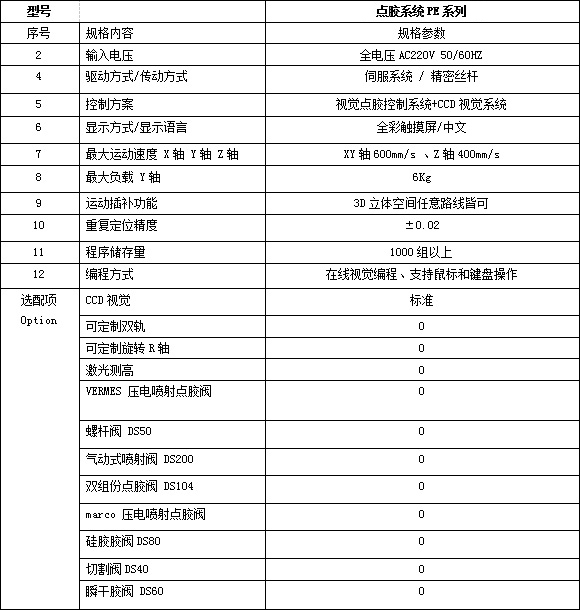

Configuration Instructions
|
order number |
Specifications |
Specifications |
|
1 |
Working range: mm X-axis, Y-axis, Z-axis, R-axis |
400*400*100 mm |
|
2 |
Drive method/Transmission method |
Servo System / Precision Lead Screw |
|
3 |
Control Scheme |
Visual dispensing control system + CCD vision system |
|
4 |
Display Mode/Display Language |
Full-color touchscreen / Chinese |
|
5 |
Maximum linear velocity: X-axis, Y-axis, Z-axis |
XY axis: 600 mm/s; Z axis: 400 mm/s |
|
6 |
Maximum load: Y-axis, X-axis |
6Kg/4Kg |
|
7 |
Motion Interpolation Function |
Any route within the 3D spatial environment is permissible. |
|
8 |
Repeatability positioning accuracy |
±0.02 |
|
9 |
Program storage capacity |
Over 1,000 sets |
|
10 |
Programming approach |
Online visual programming; supports mouse and keyboard operations |
|
Optional features |
|
|
laser-measured height |
Marco piezoelectric jet dispensing valve |
|
VERMES Piezoelectric Jetting Dispensing Valve |
Silicone rubber valve DS80 |
|
Screw Valve DS50 |
Cutting Valve DS40 |
|
Pneumatic jet valve DS200 |
Instant-sealing rubber valve DS60 |
|
Two-Component Dispensing Valve DS104 |
|
